Lab Automation: Unattended Windows Deployments including AD Forests, Domains and SQL server – Part VII: Build a Configure-Host.ps1 and Answer Files ISO for a New Active Directory Forest

Now that we have built a SQL Server successfully, lets go back a step and show how we can build out Active Directory in the lab, lifting minimum fingers in the process.

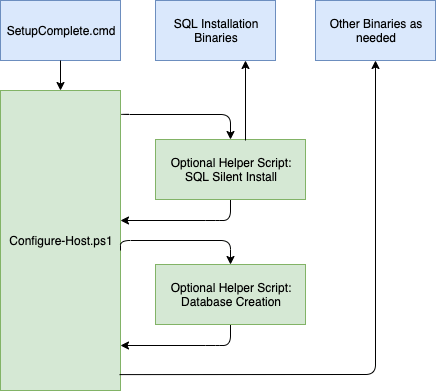

You might remember the below diagram from Post V in the series. Same basic flow will apply to building the AD Boxes, but we wont need to employ any helper scripts to get the job done.

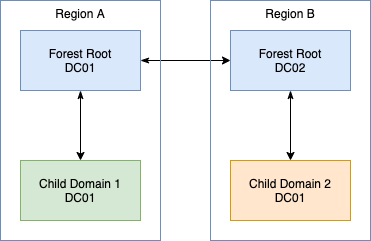

Active Directory Topology

This is what we are going to build

We’ll deploy them this order:

  • Forest Root DC01
  • Forest Root DC02
  • Child Domain 1 DC01
  • Child Domain 2 DC01

There is nothing stopping you from doing them in different orders of course

PowerShell Script for New Forest

This is the complete function that:

  • Customizes the autounattend.xml (covered in previous post in series)
  • Creates the Configure-Host.ps1 file
  • Builds the answerfiles-iso
  • Uploads the ISO to a vSphere Datastore

As you read the below, you will see a series of ‘Add-Content’ commands. Effectively, we are using these to construct a bespoke Configure-Host.ps1 file that will be included on the answer files ISO we build for the VM. Things to note:

  • In some cases we are creating lines where we want values from the script to be passed into the file.
  • In other cases we are actually creating variables on the remote machine to be used during execution
Function createRootDCAConfigISO
{
    param(
    [parameter(mandatory=$true)]
    [array]$machineObject,
    [parameter(mandatory=$true)]
    [array]$sharedDetails,
    [parameter(mandatory=$true)]
    [array]$domainDetails
    )
    #Cleanup Temporary folders if they exist
    $folderExists = Test-Path $buildfolder
    If ($folderExists)
    {
       LogMessage "Cleaning Up up Temporary Folders"
       Remove-Item $buildfolder -recurse -force -confirm:$false
    }
    #create necessary folders
    LogMessage "Creating Temporary Folders"
    New-Item -ItemType Directory -Path $buildfolder | Out-File $logFile -encoding ASCII -append
    New-Item -ItemType Directory -Path "$buildfolder\SupportingFiles" | Out-File $logFile -encoding ASCII -append
    New-Item -ItemType File -Path "$buildfolder\SupportingFiles\configure-host.ps1" | Out-File $logFile -encoding ASCII -append
    LogMessage "Creating and Injecting Windows Unattended Installation File"

    #Set the target output file
    $DestinationAnswerFilesIsoPath = "$isosPath\$environment-$($machineObject.machinename)-answerfiles.iso"

    #Read in the template AutoUnattend.xml for RootDC, replace key strings with values from JSON inputs and save to working folder
    $AutoUnattendXml = Get-Content $rootDCTemplateXml
    $AutoUnattendXml | ForEach-Object { $_ `
        -replace '<!--REPLACE WITH PRODUCTKEY-->',$commonJSON.isoGeneration.productKey `
        -replace '<!--REPLACE WITH MACHINENAME-->',$machineObject.machinename `
        -replace '<!--REPLACE WITH IPCIDR-->', $machineObject.ipCidr `
        -replace '<!--REPLACE WITH GATEWAY-->',$machineObject.gateway `
        -replace '<!--REPLACE WITH ADMINISTRATOR PASSWORD-->',$commonJson.environment.commonPassword `
        -replace '<!--REPLACE WITH CHILD DOMAIN-->',$sharedDetails.activeDirectory.childDomain `
        -replace '<!--REPLACE WITH ROOT DOMAIN-->',$commonJSON.activeDirectory.rootDomain `
    } | Set-Content "$buildfolder\SupportingFiles\autounattend.xml"

    #Create configure-host.ps1 file content
    LogMessage "Creating Post Installation Scripts"
    #Start transcript on VM being built, to ease troubleshooting
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Start-Transcript "C:\Windows\Setup\Scripts\transcript.txt"'

    #Set desired timezone (in this case hard coded)
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'tzutil /s "GMT Standard Time"'

    #Enable RDP
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-Item -Path "HKLM:\Software\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-Item -Path "HKLM:\Software\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP\Parameters"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty -path "HKLM:\Software\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP\Parameters" -Name "AllowEncryptionOracle" -Value "2" -type DWORD'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty -Path "HKLM:\System\CurrentControlSet\Control\Terminal Server" -Name "fDenyTSConnections" -Value 0 -PropertyType dword -Force'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp\" -Name "UserAuthentication" -Value 0'

    #Enable PS Remoting to allow management via remote machines
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Enable-PSRemoting -Force'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-Item wsman:\localhost\client\trustedhosts * -Force'

    #Install the required Windows Feature to deploy AD
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Install-WindowsFeature AD-Domain-Services'
    #Install the AD module required
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Import-Module ADDSDeployment'

    #Build up details required to deploy the new Forest
    $newline = '$PlainSafeModeAdministratorPassword = "'+$commonJSON.activeDirectory.rootDefaultAdministratorPassword+'"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" '$SecureSafeModeAdministratorPassword = ConvertTo-SecureString -String $PlainSafeModeAdministratorPassword -AsPlainText -Force'
    $domainNameParts = $commonJSON.activeDirectory.rootDomain -split "\."
    $netBIOSName = $domainNameParts[0]

    #Build command required to deploy the Forest
    $newline = 'Install-ADDSForest -CreateDnsDelegation:$false -DatabasePath "C:\Windows\NTDS" -DomainMode "WinThreshold" -DomainName "'+$commonJSON.activeDirectory.rootDomain+'" -DomainNetbiosName "'+$netBIOSName+'" -ForestMode "WinThreshold" -InstallDns:$true -LogPath "C:\Windows\NTDS" -NoRebootOnCompletion:$true -SysvolPath "C:\Windows\SYSVOL" -Force:$true -SafeModeAdministratorPassword $SecureSafeModeAdministratorPassword'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline

    #Remove localhost DNS server address and set permanent DNS servers
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" "netsh interface ip del dns Ethernet0 all"
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" "netsh interface ip add dns Ethernet0 $($machineObject.dnsServer1) index=1"
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" "netsh interface ip add dns Ethernet0 $($machineObject.dnsServer2) index=2"

    #Install AD Management Tools
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Install-WindowsFeature -name "RSAT-ADDS"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Install-WindowsFeature -name "RSAT-ADLDS"'

    #Copy windows source files to VM and set policy
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'mkdir C:\sources\sxs'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'xcopy D:\sources\sxs C:\sources\sxs /e /v /c'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-Item -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\Servicing"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\Servicing\" -Name "LocalSourcePath" -value "c:\sources\sxs"'

    #Set powershell parameters
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ExecutionPolicy Unrestricted'

    #Supress UAC
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ItemProperty -Path "HKLM:\Software\Microsoft\Windows\CurrentVersion\Policies\System" -Name "EnableLUA" -Value "0"'

    #Disable IPv6
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ItemProperty -Path "HKLM:\System\CurrentControlSet\Services\Tcpip6\Parameters" -Name "DisabledComponents" -Value 0xff'

    #set the credentials used for Auto Login (if required)
    $newline = '$DefaultDomainName = "'+$netBIOSName+'"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline
    $newline = '$DefaultUsername = "'+$netBIOSName+'\Administrator"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline
    $newline = '$DefaultPassword = '
    $newline += "'"
    $newline += $commonJSON.activeDirectory.rootDefaultAdministratorPassword
    $newline += "'"
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline

    #Configure to autologin as domain admin (as required)
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" '$RegPath = "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty $RegPath -Name "AutoAdminLogon" -Value "1" -type String '
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty $RegPath -Name "DefaultDomainName" -Value "$DefaultDomainName" -type String'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty $RegPath -Name "DefaultUsername" -Value "$DefaultUsername" -type String'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'New-ItemProperty $RegPath -Name "DefaultPassword" -Value "$DefaultPassword" -type String'

    #Disable IE Enhanced Security
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" '$AdminKey = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A7-37EF-4b3f-8CFC-4F3A74704073}"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" '$UserKey = "HKLM:\SOFTWARE\Microsoft\Active Setup\Installed Components\{A509B1A8-37EF-4b3f-8CFC-4F3A74704073}"'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ItemProperty -Path $AdminKey -Name "IsInstalled" -Value 0 -Force'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Set-ItemProperty -Path $UserKey -Name "IsInstalled" -Value 0 -Force'

    #configure TimeSync
    $newline = 'w32tm /config /manualpeerlist:'+$commonJSON.labNTP.externalNTP+' /syncfromflags:MANUAL'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" $newline
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'net stop w32time'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'net start w32time'
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'w32tm /resync'

    #Remove the SetupComplete.cmd file
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Remove-Item C:\Windows\Setup\Scripts\SetupComplete.cmd -force'

    #Stop Transcript
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Stop-Transcript'

    #Final Reboot
    Add-Content "$buildfolder\SupportingFiles\configure-host.ps1" 'Restart-Computer -force'
    LogMessage "Creating Configuration ISO for $environment-$($machineObject.machinename)-answerfiles.iso for environment $environment"

    #Create Answerfiles ISO
    $data = '2#p0,e,b"{0}"#pEF,e,b"{1}"' -f $etfsboot, $efisys
    start-process $oscdimg -args @("-bootdata:$data",'-u2','-udfver102', "$buildfolder\SupportingFiles", $DestinationAnswerFilesIsoPath) -wait -nonewwindow -RedirectStandardError Null1 -RedirectStandardOutput Null2

    #Upload ISO (separate powershell function not shown here)
    uploadISO External $domainDetails $commonJSON.environment.type $sharedDetails $DestinationAnswerFilesIsoPath
}

Rather than make this particular post too long, I’ll cover the other domains / domain controllers in the next few posts
